EN-60598-1
EN-60598-2-22
EN-62034
EN-303-446-1
Luminaires made up of a spotlight + electrical equipment + batteries
Installation type:
· Recessed ceiling.
Dual-function lens: long spacing for evacuation corridors and emphasis on key points such as fire protection elements.
Double spring clips installation method.
Cables between different halogen-free elements.
This luminaire is compatible with the SmartZ® intelligent emergency lighting management system, designed to facilitate maintenance and installation control. Thanks to its 2.4 GHz wireless communication capability, it creates a dynamic mesh network that allows the connection of more than 10,000 luminaires without the need for any additional wiring.
The system simplifies real-time monitoring by issuing automated alerts in case of potential failures, eliminating the need for any manual inspections.
Additionally, it has the facility to integrate with other systems, both wired and wireless.
If not connected to the mesh network, the luminaire will default and operate in Autotest mode, automatically performing the detailed tests listed below.

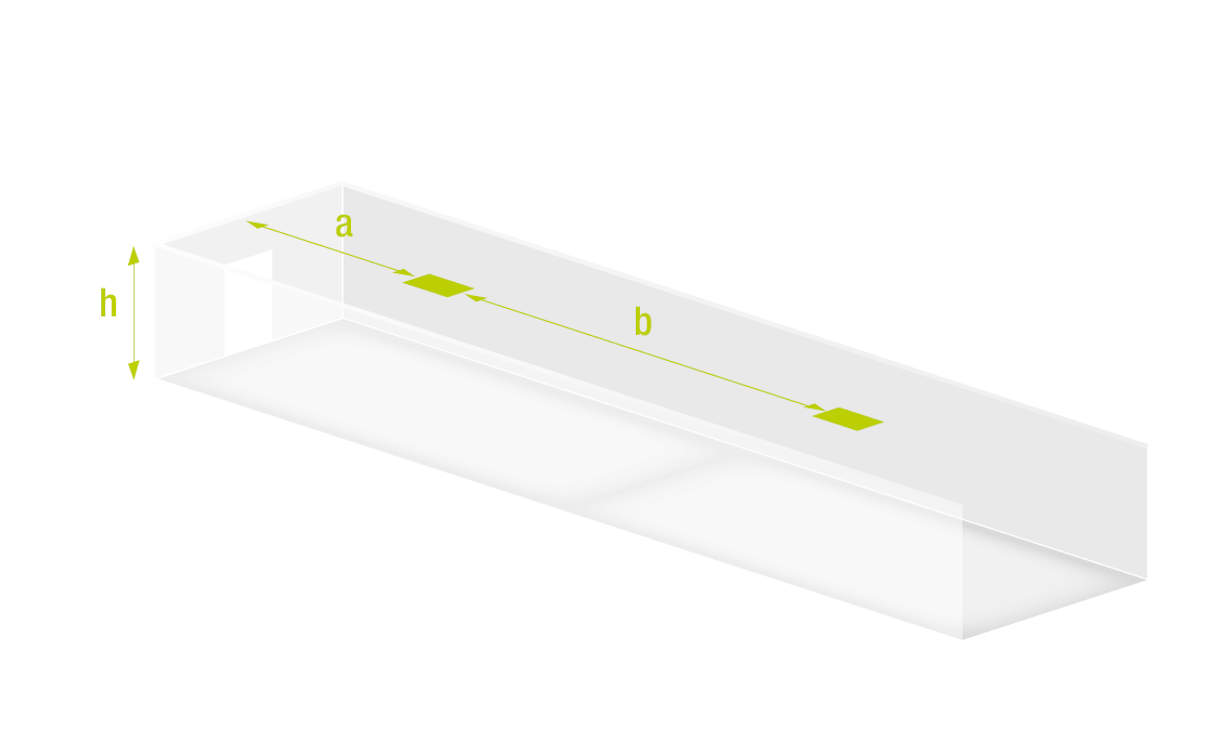

| H | A | B |
|---|---|---|
| 2 m | 7,7 m | 19,0 m |
| 2,5 m | 8,1 m | 21,2 m |
| 3 m | 7,6 m | 23,5 m |
| 4 m | 5,0 m | 22,8 m |
| 5 m | 4,7 m | 16,7 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 1 lux over a 1 m wide evacuation path.
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.
Product weight: 0.28 kg
Boxed product weight: 0.31 kg
Weight of box of 15 units: 4.89 kg
No hay información BC3 disponible
| Battery system | Control system | Emergency | Type* | Lens | Duration | Battery | Colour | Warranty | Certifications | Part number |
|---|---|---|---|---|---|---|---|---|---|---|
| Self-contained | AutoTest | 370 lm | NM | Escape Route + | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3402LX |
| Self-contained | AutoTest | 380 lm | NM | Corner | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3403LX |
| Self-contained | AutoTest | 400 lm | NM | Narrow | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3404LX |
| Self-contained | AutoTest | 420 lm | NM | Antipanic | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3400LX |
| Self-contained | AutoTest | 370 lm | NM | Escape Route + | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3402LX3 |
| Self-contained | AutoTest | 380 lm | NM | Corner | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3403LX3 |
| Self-contained | AutoTest | 400 lm | NM | Narrow | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3404LX3 |
| Self-contained | AutoTest | 420 lm | NM | Antipanic | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3400LX3 |
| Self-contained | DALI2 | 370 lm | NM | Escape Route + | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3402LA |
| Self-contained | DALI2 | 380 lm | NM | Corner | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3403LA |
| Self-contained | DALI2 | 400 lm | NM | Narrow | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3404LA |
| Self-contained | DALI2 | 420 lm | NM | Antipanic | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3400LA |
| Self-contained | DALI2 | 370 lm | NM | Escape Route + | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3402LA3 |
| Self-contained | DALI2 | 380 lm | NM | Corner | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3403LA3 |
| Self-contained | DALI2 | 400 lm | NM | Narrow | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3404LA3 |
| Self-contained | DALI2 | 420 lm | NM | Antipanic | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3400LA3 |
| Self-contained | Wireless SmartZ® | 370 lm | NM | Escape Route + | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3402LW |
| Self-contained | Wireless SmartZ® | 380 lm | NM | Corner | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3403LW |
| Self-contained | Wireless SmartZ® | 400 lm | NM | Narrow | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3404LW |
| Self-contained | Wireless SmartZ® | 420 lm | NM | Antipanic | 1 h | 6.4V-1.5Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3400LW |
| Self-contained | Wireless SmartZ® | 370 lm | NM | Escape Route + | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3402LW3 |
| Self-contained | Wireless SmartZ® | 380 lm | NM | Corner | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3403LW3 |
| Self-contained | Wireless SmartZ® | 400 lm | NM | Narrow | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3404LW3 |
| Self-contained | Wireless SmartZ® | 420 lm | NM | Antipanic | 3 h | 6.4V-4.0Ah LiFePO₄ | Brown Cork | 5 Years | CE UK CMIM | LCR3400LW3 |
