CORKIA SUPRA – LCF3400LX

CORKIA SUPRA A SELFTEST 420lm NM 1h IP20/IK04 CORK 230V 50Hz

ZEMPER Self-Contained, CORKIA SUPRA series, reference LCF3400LX, Non-maintained type, with AutoTest control system, IP20 protection rating, IK04 impact resistance and Class II insulation.
Manufactured in Cork, color Brown Cork.
Polycarbonate Anti-panic Lens.
Light source: 1 x LED 4W, 4000K colour temperature.
Supply voltage: 230V 50Hz.
Emergency mode power consumption 0.6 W.
Includes 6.4V-3.0Ah LiFePO₄ battery providing 1 h autonomy and reaching full charge in 12 h, ensuring an emergency luminous flux of 420 lm.
Equipped with Self-test system.
Suitable for installation on normally flammable surfaces.
Installation type: Ceiling/Wall Surface.
Manufactured in Spain in compliance with standards: EN-60598-1, EN-60598-2-22, EN-62034.

Warranty

Years

Product

Specifications

Functional Specifications

Control system

AutoTest

Yes

Type

Non-maintained

Supply

230V 50Hz<0.6W

Non-maintained mode consumption

0.6 W

Emergency

420 lm

Duration

1 h

Battery

6.4V-3.0Ah LiFePO₄

Charging time

12 h

Mechanical and Aesthetic Specifications

Mounting

Ceiling/Wall Surface

Insulation

Class II

Ingress Protection

IP20

Impact protection

IK04

Lamp

1 x LED 4W

LED color temperature

4000K

Body material

Cork

Finish

Brown Cork

Diffuser / Optics

Polycarbonate Anti-panic Lens

Working temperature

0~40 °C

Suitable for flammable surface

Yes

Regulations

EN-60598-1

EN-60598-2-22

EN-62034

Certifications

CE declaration of conformity

UKCA declaration of conformity

CMIM

Morocco Declaration of Conformity

Installation

Installation type:

· Ceiling/Wall surface.

Possibility of connection with:

· Surface conduit wiring.

Download installation manual

Operating characteristics

The luminaire has a built·in button, which allows:

· Put on Standby without power supply.

Microprocessor controlled luminaire that performs periodic and automatic tests.

Functional test every 7 days.

Duration test every 365 days.

The test result is shown in the status indicator LEDs.

The luminaire has status LEDs, which indicates:

Green on: correct operation

Green flashing: test in progress

Orange on: incorrect battery or duration

Orange flashing: functional failure

Both leds off: no power supply or total failure of the luminaire

Spacing

H	A	B	C	D
2 m	6,3 m	12,0 m	6,3 m	12,5 m
2,5 m	7,5 m	13,5 m	7,2 m	14,0 m
3 m	8,4 m	15,5 m	8,1 m	15,5 m
4 m	9,0 m	18,5 m	9,0 m	18,5 m
5 m	7,8 m	21,5 m	7,8 m	21,5 m

Spacing data calculated with no reflections and a maintenance factor of 0.9.

Compliant with the updated standard EN-1838:2024.

Minimum illuminance of 0.5 (anti-panic calculation).

The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.

Photometry

Area Lens Corkia Supra

Download photometric curve

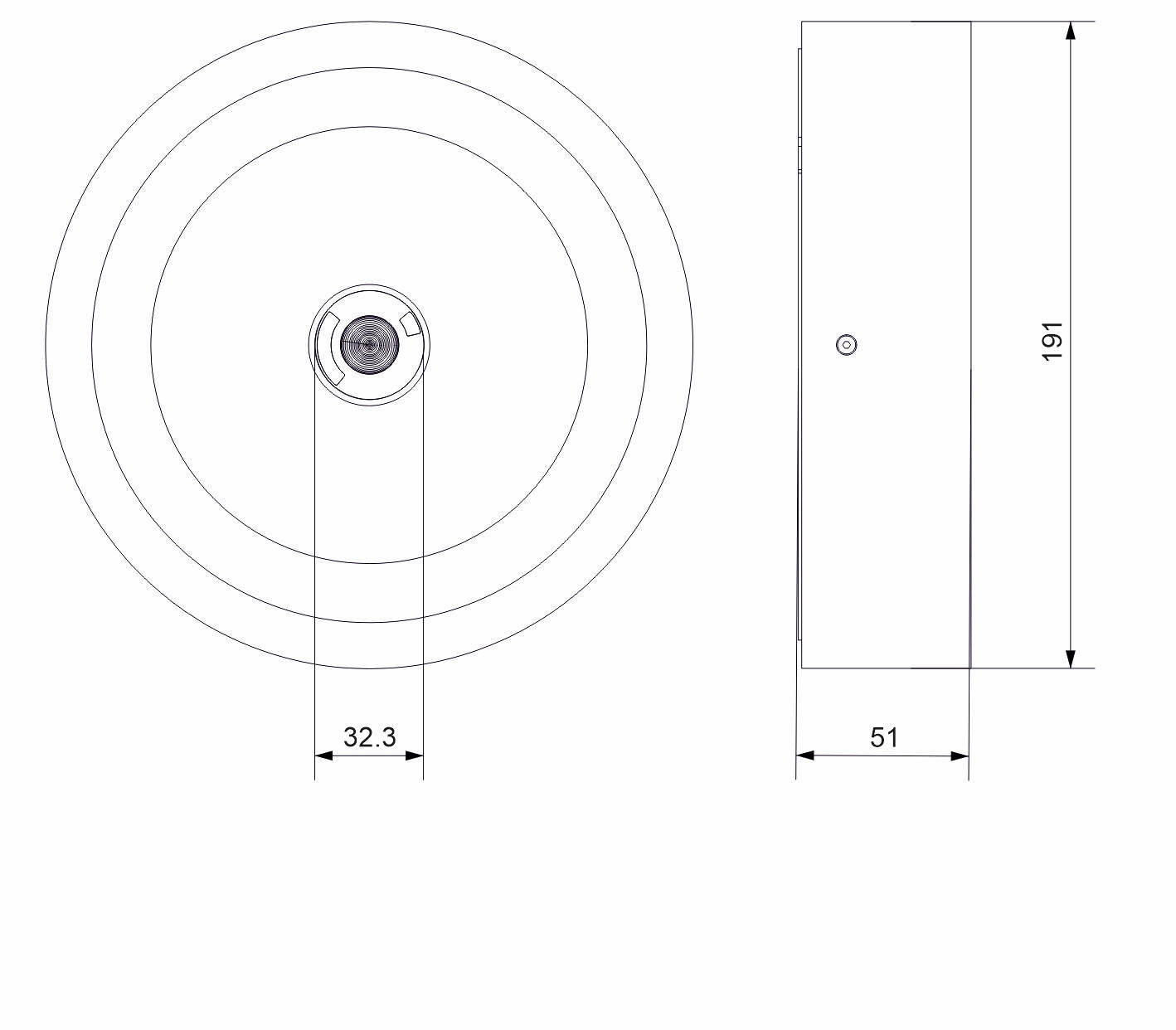

Dimensions

Download dimension image

Weight

Product weight: 0.28 kg

Boxed product weight: 0.36 kg

Weight of box of 12 units: 4.46 kg

BC3 file

No hay información BC3 disponible

Battery system	Control system	Emergency	Type*	Lens	Duration	Battery	Colour	Warranty	Certifications	Part number
Self-contained	AutoTest	370 lm	NM	Escape Route +	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3402LX
Self-contained	AutoTest	380 lm	NM	Corner	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3403LX
Self-contained	AutoTest	380 lm	NM	Wall Asymetric	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3406LX
Self-contained	AutoTest	400 lm	NM	Narrow	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3404LX
Self-contained	AutoTest	420 lm	NM	Antipanic	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3400LX
Self-contained	AutoTest	370 lm	NM	Escape Route +	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3402LX3
Self-contained	AutoTest	380 lm	NM	Corner	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3403LX3
Self-contained	AutoTest	380 lm	NM	Wall Asymetric	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3406LX3
Self-contained	AutoTest	400 lm	NM	Narrow	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3404LX3
Self-contained	AutoTest	420 lm	NM	Antipanic	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3400LX3
Self-contained	DALI2	370 lm	NM	Escape Route +	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3402LA
Self-contained	DALI2	380 lm	NM	Corner	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3403LA
Self-contained	DALI2	380 lm	NM	Wall Asymetric	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3406LA
Self-contained	DALI2	400 lm	NM	Narrow	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3404LA
Self-contained	DALI2	420 lm	NM	Antipanic	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3400LA
Self-contained	DALI2	370 lm	NM	Escape Route +	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3402LA3
Self-contained	DALI2	380 lm	NM	Corner	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3403LA3
Self-contained	DALI2	380 lm	NM	Wall Asymetric	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3406LA3
Self-contained	DALI2	400 lm	NM	Narrow	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3404LA3
Self-contained	DALI2	420 lm	NM	Antipanic	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3400LA3
Self-contained	Wireless SmartZ®	370 lm	NM	Escape Route +	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3402LW
Self-contained	Wireless SmartZ®	380 lm	NM	Corner	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3403LW
Self-contained	Wireless SmartZ®	380 lm	NM	Wall Asymetric	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3406LW
Self-contained	Wireless SmartZ®	400 lm	NM	Narrow	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3404LW
Self-contained	Wireless SmartZ®	420 lm	NM	Antipanic	1 h	6.4V-3.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3400LW
Self-contained	Wireless SmartZ®	370 lm	NM	Escape Route +	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3402LW3
Self-contained	Wireless SmartZ®	380 lm	NM	Corner	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3403LW3
Self-contained	Wireless SmartZ®	380 lm	NM	Wall Asymetric	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3406LW3
Self-contained	Wireless SmartZ®	400 lm	NM	Narrow	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3404LW3
Self-contained	Wireless SmartZ®	420 lm	NM	Antipanic	3 h	6.4V-4.0Ah LiFePO₄	Brown Cork	5 Years	CE UK CMIM	LCF3400LW3

*NM: Non-maintained. The luminaire operates from emergency supply only upon failure of the normal mains supply.
