CORKIA SUPRA – LCF3400LX3

View presentation
CORKIA SUPRA A AUTOTEST 420lm NM 3h IP20/IK04 CORK 230V 50Hz
ZEMPER Self-Contained, CORKIA SUPRA series, reference LCF3400LX3, Non-maintained type, with AutoTest control system, IP20 protection rating, IK04 impact resistance and Class II insulation.
Manufactured in Cork, color Brown Cork.
Polycarbonate Anti-panic Lens.
Light source: 1 x LED 4W, 4000K colour temperature.
Supply voltage: 230V 50Hz.
Power factor 0.25.
Emergency mode power consumption 0,6 W.
Includes 6.4V-4.0Ah LiFePOâ‚„ battery providing 3 h autonomy and reaching full charge in 12 h, ensuring an emergency luminous flux of 420 lm.
Equipped with Self-test system.
Suitable for installation on normally flammable surfaces.
Installation type: Ceiling/Wall Surface.
Manufactured in Spain in compliance with standards: EN-60598-1, EN-60598-2-22, EN-62034.
Copy text from the description
Warranty
10
Years
Sales support
Technical support
Share
Imagen de referencia
Vídeo de referencia
Imagen de referencia
Imagen de referencia
Imagen de referencia
Imagen de referencia
Imagen de referencia

Product

Functional Specifications

Control system
AutoTest
AutoTest
Yes
Type
Non-maintained
Supply
230V 50Hz<0.6W
Power factor
25%
Non-maintained mode consumption
0,6 W
Emergency
420 lm
Duration
3 h
Battery
6.4V-4.0Ah LiFePOâ‚„
Charging time
12 h

Mechanical and Aesthetic Specifications

Mounting
Ceiling/Wall Surface
Insulation
Class II
Ingress Protection
IP20
Impact protection
IK04
Lamp
1 x LED 4W
LED color temperature
4000K
Body material
Cork
Finish
Brown Cork
Diffuser / Optics
Polycarbonate Anti-panic Lens
Working temperature
0~40 °C
Suitable for flammable surface
Yes

EN-60598-1

EN-60598-2-22

EN-62034

CE
CE declaration of conformity
UK
UKCA declaration of conformity
CMIM
Morocco Declaration of Conformity

Installation type:

· Ceiling/Wall surface.

Possibility of connection with:

· Surface conduit wiring.

EVO10 is a high-performance emergency luminaire designed for maximum efficiency and sustainability.Built with LiFePO4 (Lithium Iron) battery technology, it offers an extended lifespan, reduced power consumption and enhanced reliability. Its design minimizes material use while ensuring durability, with 99% of plastics reused and 95% of energy sourced from renewables. EVO10 undergoes five levels of quality control and integrates seamlessly with the SmartZ® management system for real-time monitoring and diagnostics, optimizing performance while reducing installation and maintenance footprint, contributing to an overall sustainability solution. Manufactured in the EU, that meets the highest industry standards and comes with a 10-year warranty, ensuring long-term operational efficiency and lower maintenance costs.

The luminaire has a built·in button, which allows:

· Put on Standby without power supply.

Microprocessor controlled luminaire that performs periodic and automatic tests.
Functional test every 7 days.
Duration test every 365 days.
The test result is shown in the status indicator LEDs.
The luminaire has status LEDs, which indicates:
Green on: correct operation
Green flashing: test in progress
Orange on: incorrect battery or duration
Orange flashing: functional failure
Both leds off: no power supply or total failure of the luminaire
Antipa
HABCD
2 m6,3 m12,0 m6,3 m12,5 m
2,5 m7,5 m13,5 m7,2 m14,0 m
3 m8,4 m15,5 m8,1 m15,5 m
4 m9,0 m18,5 m9,0 m18,5 m
5 m7,8 m21,5 m7,8 m21,5 m

Spacing data calculated with no reflections and a maintenance factor of 0.9.

Compliant with the updated standard EN-1838:2024.

Minimum illuminance of 0.5 (anti-panic calculation).

The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.

Area Lens Corkia Supra
Curva fotométrica

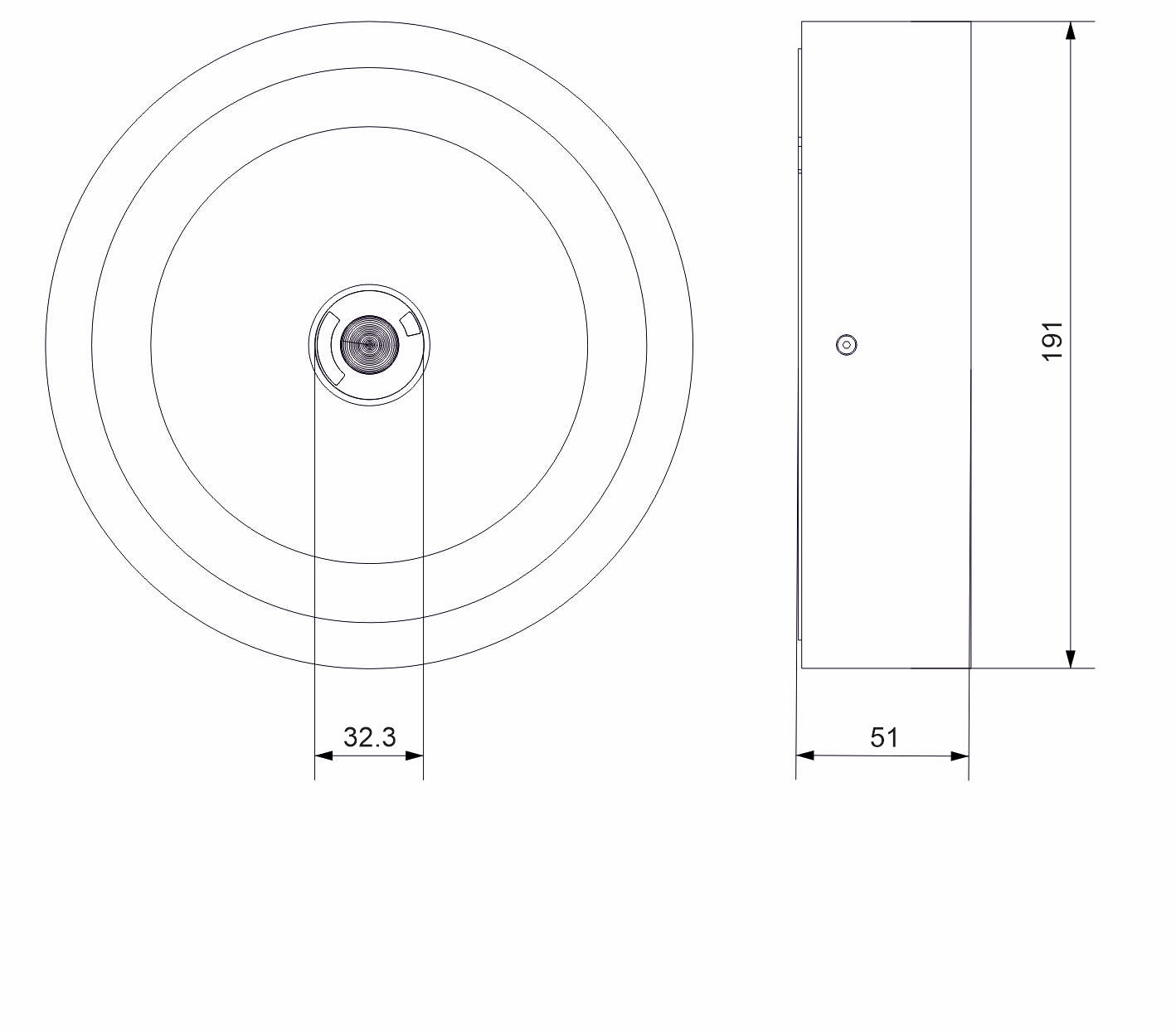

Dimensiones de la referencia

Product weight: 0.65 kg

Boxed product weight: 0.69 kg

Weight of box of 15 units: 4.89 kg

No hay información BC3 disponible

Battery systemControl systemEmergencyType*LensDurationBatteryColourWarrantyCertificationsPart number
Self-containedAutoTest370 lmNMEscape Route +1 h6.4V-3.0Ah LiFePOâ‚„Brown Cork5 YearsCE UK CMIMLCF3402LX
Self-containedAutoTest380 lmNMCorner1 h6.4V-3.0Ah LiFePOâ‚„Brown Cork5 YearsCE UK CMIMLCF3403LX
Self-containedAutoTest400 lmNMNarrow1 h6.4V-3.0Ah LiFePOâ‚„Brown Cork5 YearsCE UK CMIMLCF3404LX
Self-containedAutoTest420 lmNMAntipanic1 h6.4V-3.0Ah LiFePOâ‚„Brown Cork5 YearsCE UK CMIMLCF3400LX
Self-containedAutoTest370 lmNMEscape Route +3 h6.4V-4.0Ah LiFePOâ‚„Brown Cork5 YearsCE UK CMIMLCF3402LX3
Self-containedAutoTest380 lmNMCorner3 h6.4V-4.0Ah LiFePOâ‚„Brown Cork5 YearsCE UK CMIMLCF3403LX3
Self-containedAutoTest400 lmNMNarrow3 h6.4V-4.0Ah LiFePOâ‚„Brown Cork5 YearsCE UK CMIMLCF3404LX3
Self-containedWireless SmartZ®370 lmNMEscape Route +1 h6.4V-3.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3402LW
Self-containedWireless SmartZ®380 lmNMCorner1 h6.4V-3.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3403LW
Self-containedWireless SmartZ®400 lmNMNarrow1 h6.4V-3.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3404LW
Self-containedWireless SmartZ®420 lmNMAntipanic1 h6.4V-3.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3400LW
Self-containedWireless SmartZ®370 lmNMEscape Route +3 h6.4V-4.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3402LW3
Self-containedWireless SmartZ®380 lmNMCorner3 h6.4V-4.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3403LW3
Self-containedWireless SmartZ®400 lmNMNarrow3 h6.4V-4.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3404LW3
Self-containedWireless SmartZ®420 lmNMAntipanic3 h6.4V-4.0Ah LiFePO₄Brown Cork5 YearsCE UK CMIMLCF3400LW3
Self-containedAutoTest420 lmNMAntipanic3 h6.4V-4.0Ah LiFePOâ‚„Brown Cork10 YearsCE UK CMIMLCF3400LX3
  • *NM: Non-maintained. The luminaire operates from emergency supply only upon failure of the normal mains supply.
