EN 60598-2-22
Installation type:
· Ceiling/Wall surface.
Possibility of connection with:
· Surface conduit wiring.
One orientable spotlight, vertically.
Supplied with 125° lens and three additional lenses:
· Corridor lens
· 45º lens
· 80º lens
The luminaire has a built·in button, which allows:
· Put on Standby without power supply.
| H | A | B | C | D |
|---|---|---|---|---|
| 6 m | 6,1 m | 13,1 m | 5,3 m | 12,1 m |
| 8 m | 7,3 m | 16,5 m | 6,7 m | 15,4 m |
| 11 m | 8,8 m | 20,5 m | 8,6 m | 19,5 m |
| 13 m | 9,8 m | 22,5 m | 9,6 m | 22,2 m |
| 15 m | 10,6 m | 24,5 m | 10,4 m | 24,5 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 1 lux over a 1 m wide evacuation path.
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.
| H | A | B | C | D |
|---|---|---|---|---|
| 6 m | 5,7 m | 12,0 m | 6,6 m | 12,0 m |
| 8 m | 7,2 m | 13,5 m | 8,1 m | 13,5 m |
| 11 m | 9,3 m | 18,0 m | 10,2 m | 16,5 m |
| 13 m | 10,5 m | 19,5 m | 11,1 m | 19,5 m |
| 15 m | 11,7 m | 21,5 m | 12,3 m | 22,0 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 0.5 (anti-panic calculation).
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.
| H | A | B | C | D |
|---|---|---|---|---|
| 6 m | 6,5 m | 14,6 m | 6,3 m | 14,5 m |
| 8 m | 8,0 m | 18,0 m | 7,7 m | 17,7 m |
| 11 m | 9,4 m | 22,5 m | 9,4 m | 22,0 m |
| 13 m | 10,4 m | 25,0 m | 10,4 m | 24,5 m |
| 15 m | 11,2 m | 26,8 m | 11,2 m | 26,5 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 1 lux over a 1 m wide evacuation path.
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.
| H | A | B | C | D |
|---|---|---|---|---|
| 6 m | 6,9 m | 13,0 m | 6,9 m | 13,0 m |
| 8 m | 8,4 m | 15,5 m | 8,7 m | 16,0 m |
| 11 m | 10,5 m | 19,5 m | 11,1 m | 20,0 m |
| 13 m | 11,7 m | 21,0 m | 12,0 m | 23,5 m |
| 15 m | 12,9 m | 22,0 m | 12,9 m | 27,0 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 0.5 (anti-panic calculation).
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.
| H | A | B | C | D |
|---|---|---|---|---|
| 6 m | 9,4 m | 21,7 m | 9,5 m | 21,3 m |
| 8 m | 11,2 m | 26,0 m | 11,6 m | 26,5 m |
| 11 m | 13,2 m | 31,5 m | 13,4 m | 33,0 m |
| 13 m | 12,9 m | 34,6 m | 13,1 m | 35,6 m |
| 15 m | 11,4 m | 36,5 m | 10,7 m | 37,1 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 1 lux over a 1 m wide evacuation path.
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.
| H | A | B | C | D |
|---|---|---|---|---|
| 6 m | 10,2 m | 17,5 m | 10,5 m | 18,0 m |
| 8 m | 12,9 m | 21,5 m | 12,6 m | 23,5 m |
| 11 m | 16,2 m | 27,0 m | 15,6 m | 31,0 m |
| 13 m | 17,7 m | 30,0 m | 17,1 m | 36,0 m |
| 15 m | 18,9 m | 35,5 m | 18,6 m | 37,5 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 0.5 (anti-panic calculation).
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.
| H | A | B |
|---|---|---|
| 6 m | 15,5 m | 36,6 m |
| 8 m | 17,6 m | 43,6 m |
| 11 m | 18,6 m | 49,1 m |
| 13 m | 18,9 m | 51,1 m |
| 15 m | 16,1 m | 52,5 m |
Spacing data calculated with no reflections and a maintenance factor of 0.9.
Compliant with the updated standard EN-1838:2024.
Minimum illuminance of 1 lux over a 1 m wide evacuation path.
The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.

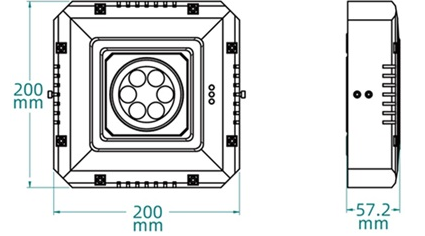

Product weight: 2.30 kg
Boxed product weight: 2.58 kg
Weight of box of 5 units: 3.58 kg
No hay información BC3 disponible
| Battery system | Control system | Emergency | Mains | Type* | Duration | Battery | Colour | Warranty | Certifications | Part number |
|---|---|---|---|---|---|---|---|---|---|---|
| Self-contained | AutoTest | 2200 lm | 2200 lm | M/NM | 1 h | 6,4V-4,0Ah LiFePO₄ | White | 5 Years | CE UK CMIM | PMP2500LXP |
| Self-contained | AutoTest | 1500 lm | 2300 lm | M/NM | 3 h | 6,4V-8,0Ah LiFePO₄ | White | 5 Years | CE UK CMIM | PMP1500LXP3 |
