SPACE – LSLX3251LW3

SPACE P SMARTZ 285lm NM 3h IP44/IK04 WHITE 230V 50Hz
ZEMPER Self-Contained, SPACE series, reference LSLX3251LW3, Non-maintained type, with SmartZ control system, IP44 protection rating, IK04 impact resistance and Class II insulation.
Manufactured in Recycled Polycarbonate, color White RAL9003.
Polycarbonate Escape Route Lens.
Light source: 1 x LED 3W, 4000K colour temperature.
Supply voltage: 230V 50Hz.
Emergency mode power consumption 0,6 W.
Includes 6.4V-3.0Ah LiFePO₄ battery providing 3 h autonomy and reaching full charge in 12 h, ensuring an emergency luminous flux of 285 lm.
Equipped with Self-test system.
Suitable for installation on normally flammable surfaces.
Installation type: Ceiling Recessed.
Manufactured in Spain in compliance with standards: EN-60598-1, EN-60598-2-22, EN-62034, EN-303-446-1.
Warranty
10
Years
Share
Imagen de referencia
Imagen de referencia
Imagen de referencia
Imagen de referencia
Imagen de referencia
Imagen de referencia

Product

Functional Specifications

Control system
SmartZ
AutoTest
Yes
Type
Non-maintained
Supply
230V 50Hz<0.6W
Non-maintained mode consumption
0,6 W
Emergency
285 lm
Duration
3 h
Battery
6.4V-3.0Ah LiFePO₄
Charging time
12 h

Mechanical and Aesthetic Specifications

Mounting
Ceiling Recessed
Insulation
Class II
Ingress Protection
IP44
Impact protection
IK04
Lamp
1 x LED 3W
LED color temperature
4000K
Body material
Recycled Polycarbonate
Finish
White RAL9003
Diffuser / Optics
Polycarbonate Escape Route Lens
Working temperature
0~40 °C
Suitable for flammable surface
Yes

EN-60598-1

EN-60598-2-22

EN-62034

EN-303-446-1

CE
CE declaration of conformity
UK
UKCA declaration of conformity
CMIM
Morocco Declaration of Conformity

Luminaires made up of a spotlight + electrical equipment + batteries

Installation type:

· Recessed ceiling.

Optics designed for hallways

Double spring clips installation method.

Cables between different halogen-free elements.

EVO10 is a high-performance emergency luminaire designed for maximum efficiency and sustainability.Built with LiFePO4 (Lithium Iron) battery technology, it offers an extended lifespan, reduced power consumption and enhanced reliability. Its design minimizes material use while ensuring durability, with 99% of plastics reused and 95% of energy sourced from renewables. EVO10 undergoes five levels of quality control and integrates seamlessly with the SmartZ® management system for real-time monitoring and diagnostics, optimizing performance while reducing installation and maintenance footprint, contributing to an overall sustainability solution. Manufactured in the EU, that meets the highest industry standards and comes with a 10-year warranty, ensuring long-term operational efficiency and lower maintenance costs.

This luminaire is compatible with the SmartZ® intelligent emergency lighting management system, designed to facilitate maintenance and installation control. Thanks to its 2.4 GHz wireless communication capability, it creates a dynamic mesh network that allows the connection of more than 10,000 luminaires without the need for any additional wiring.

The system simplifies real-time monitoring by issuing automated alerts in case of potential failures, eliminating the need for any manual inspections.

Additionally, it has the facility to integrate with other systems, both wired and wireless.

If not connected to the mesh network, the luminaire will default and operate in Autotest mode, automatically performing the detailed tests listed below.

Microprocessor controlled luminaire that performs periodic and automatic tests.
Functional test every 7 days.
Duration test every 365 days.
The test result is shown in the status indicator LEDs.
The luminaire has status LEDs, which indicates:
Green on: correct operation
Green flashing: test in progress
Orange on: incorrect battery or duration
Orange flashing: functional failure
Both leds off: no power supply or total failure of the luminaire
Evacua
HAB
2 m9,2 m23,0 m
2,5 m10,0 m25,5 m
3 m10,3 m27,5 m
4 m4,6 m30,2 m
5 m3,5 m24,5 m

Spacing data calculated with no reflections and a maintenance factor of 0.9.

Compliant with the updated standard EN-1838:2024.

Minimum illuminance of 1 lux over a 1 m wide evacuation path.

The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.

Space Corridor Lens
Curva fotométrica

Product weight: 0.28 kg

Boxed product weight: 0.31 kg

Weight of box of 15 units: 4.89 kg

No hay información BC3 disponible

Battery systemControl systemEmergencyType*LensDurationBatteryColourWarrantyCertificationsPart number
Self-containedDALI2280 lmNMEscape Route1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3251LA
Self-containedDALI2280 lmNMEscape Route1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3251LAN
Self-containedDALI2370 lmNMEscape Route +1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3402LA
Self-containedDALI2370 lmNMEscape Route +1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3402LAN
Self-containedDALI2380 lmNMCorner1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3403LA
Self-containedDALI2380 lmNMCorner1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3403LAN
Self-containedDALI2400 lmNMNarrow1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3404LA
Self-containedDALI2400 lmNMNarrow1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3404LAN
Self-containedDALI2420 lmNMAntipanic1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3400LA
Self-containedDALI2420 lmNMAntipanic1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3400LAN
Self-containedDALI2285 lmNMEscape Route3 h6.4V-3.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3251LA3
Self-containedDALI2285 lmNMEscape Route3 h6.4V-3.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3251LA3N
Self-containedDALI2370 lmNMEscape Route +3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3402LA3
Self-containedDALI2370 lmNMEscape Route +3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3402LA3N
Self-containedDALI2380 lmNMCorner3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3403LA3
Self-containedDALI2380 lmNMCorner3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3403LA3N
Self-containedDALI2400 lmNMNarrow3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3404LA3
Self-containedDALI2400 lmNMNarrow3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3404LA3N
Self-containedDALI2420 lmNMAntipanic3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3400LA3
Self-containedDALI2420 lmNMAntipanic3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3400LA3N
Self-containedWireless SmartZ®280 lmNMEscape Route1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3251LW
Self-containedWireless SmartZ®280 lmNMEscape Route1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3251LWN
Self-containedWireless SmartZ®370 lmNMEscape Route +1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3402LW
Self-containedWireless SmartZ®370 lmNMEscape Route +1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3402LWN
Self-containedWireless SmartZ®380 lmNMCorner1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3403LW
Self-containedWireless SmartZ®380 lmNMCorner1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3403LWN
Self-containedWireless SmartZ®400 lmNMNarrow1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3404LW
Self-containedWireless SmartZ®400 lmNMNarrow1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3404LWN
Self-containedWireless SmartZ®420 lmNMAntipanic1 h6.4V-1.5Ah LiFePO₄White10 YearsCE UK CMIMLSLX3400LW
Self-containedWireless SmartZ®420 lmNMAntipanic1 h6.4V-1.5Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3400LWN
Self-containedWireless SmartZ®285 lmNMEscape Route3 h6.4V-3.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3251LW3
Self-containedWireless SmartZ®285 lmNMEscape Route3 h6.4V-3.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3251LW3N
Self-containedWireless SmartZ®370 lmNMEscape Route +3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3402LW3
Self-containedWireless SmartZ®370 lmNMEscape Route +3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3402LW3N
Self-containedWireless SmartZ®380 lmNMCorner3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3403LW3
Self-containedWireless SmartZ®380 lmNMCorner3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3403LW3N
Self-containedWireless SmartZ®400 lmNMNarrow3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3404LW3
Self-containedWireless SmartZ®400 lmNMNarrow3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3404LW3N
Self-containedWireless SmartZ®420 lmNMAntipanic3 h6.4V-4.0Ah LiFePO₄White10 YearsCE UK CMIMLSLX3400LW3
Self-containedWireless SmartZ®420 lmNMAntipanic3 h6.4V-4.0Ah LiFePO₄Black10 YearsCE UK CMIMLSLX3400LW3N
  • *NM: Non-maintained. The luminaire operates from emergency supply only upon failure of the normal mains supply.
ACC. IP65 SPACE WHITE
Reference
ACE0065
SMARTZ CONTROL UNIT+ UPS CSZ002+SAI002
Reference
CSZ003
Technical datasheet
Series datasheet
Installation manual
Photometric file
BIM object
CE declaration of conformity
UKCA declaration of conformity
Morocco Declaration of Conformity

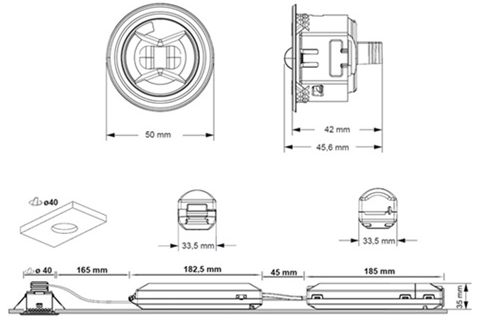

Dimensions
