SPAZIO R – LSR3250LXN

SPAZIO ROUND A AUTOTEST 235lm NM 1h IP42/IK04 BLACK 230V 50Hz

ZEMPER Self-Contained, SPAZIO R series, reference LSR3250LXN, Non-maintained type, with AutoTest control system, IP42 protection rating, IK04 impact resistance and Class II insulation.
Manufactured in Polycarbonate, color Black RAL9005.
Polycarbonate Anti-panic Lens.
Light source: 1XLEDS 3W, 4000K colour temperature.
Supply voltage: 230V 50Hz.
Emergency mode power consumption 1,0 W.
Includes 3.2V-1.5Ah LiFePO₄ battery providing 1 h autonomy and reaching full charge in 12 h, ensuring an emergency luminous flux of 235 lm.
Equipped with: Emergency remote control, Self-test system.
Suitable for installation on normally flammable surfaces.
Installation type: Ceiling Recessed.
Manufactured in Spain in compliance with standards: EN-60598-1, EN-60598-2-22, EN-62034.

Warranty

Years

Product

Specifications

Functional Specifications

Control system

AutoTest

Yes

Type

Non-maintained

Supply

230V 50Hz<1.0W

Non-maintained mode consumption

1,0 W

Emergency

235 lm

Duration

1 h

Battery

3.2V-1.5Ah LiFePO₄

Charging time

12 h

Remote control

Yes

Mechanical and Aesthetic Specifications

Mounting

Ceiling Recessed

Insulation

Class II

Ingress Protection

IP42

Impact protection

IK04

Lamp

1XLEDS 3W

LED color temperature

4000K

Body material

Polycarbonate

Finish

Black RAL9005

Diffuser / Optics

Polycarbonate Anti-panic Lens

Working temperature

0~40 °C

Suitable for flammable surface

Yes

Regulations

EN-60598-1

EN-60598-2-22

EN-62034

Certifications

CE declaration of conformity

UKCA declaration of conformity

CMIM

Morocco Declaration of Conformity

Installation

Luminaire made up of a spotlight + electrical equipment with batteries

Installation type:

· Recessed ceiling.

Double spring clips installation method.

Download installation manual

Operating characteristics

Remote control input that allows:

· Put on Standby without power supply.

· Restart in emergency status without power supply.

· Switch on in emergency status (more than 24 h of charge)

· Manual and remote duration test. (more than 24 hours of charge).

· Date and time programming of the tests.

· Reset of the luminaire status.

Microprocessor controlled luminaire that performs periodic and automatic tests.

Functional test every 7 days.

Duration test every 365 days.

The test result is shown in the status indicator LEDs.

The luminaire has status LEDs, which indicates:

Green on: correct operation

Green flashing: test in progress

Orange on: incorrect battery or duration

Orange flashing: functional failure

Both leds off: no power supply or total failure of the luminaire

Spacing

H	A	B	C	D
2 m	5,1 m	10,5 m	5,1 m	10,5 m
2,5 m	5,7 m	11,5 m	5,7 m	12,0 m
3 m	6,3 m	13,0 m	6,3 m	13,0 m
4 m	7,2 m	15,0 m	7,2 m	15,5 m
5 m	7,8 m	17,0 m	7,8 m	17,0 m

Spacing data calculated with no reflections and a maintenance factor of 0.9.

Compliant with the updated standard EN-1838:2024.

Minimum illuminance of 0.5 (anti-panic calculation).

The calculation of spacing distances is carried out considering the height of the light emission point, without taking into account the dimensions of the luminaire.

Photometry

Anti-panic lens

Download photometric curve

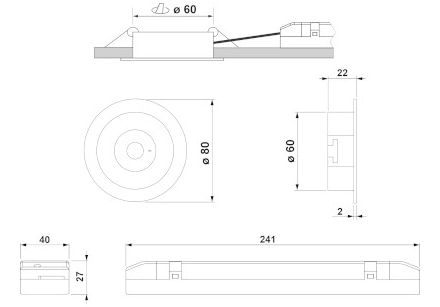

Dimensions

Download dimension image

Weight

Product weight: 0.20 kg

Boxed product weight: 0.28 kg

Weight of box of 18 units: 5.32 kg

BC3 file

No hay información BC3 disponible

Battery system	Control system	Emergency	Mains	Type*	Lens	Duration	Battery	Colour	Warranty	Certifications	Part number
Self-contained	AutoTest	235 lm		NM	Antipanic	1 h	3.2V-1.5Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR3250LXN
Self-contained	AutoTest	235 lm		NM	Escape Route	1 h	3.2V-1.5Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR3251LXN
Self-contained	AutoTest	280 lm		NM	Antipanic	1 h	3.2V-1.5Ah LiFePO₄	White	5 Years	CE UK CMIM	LSR3250LX
Self-contained	AutoTest	280 lm		NM	Escape Route	1 h	3.2V-1.5Ah LiFePO₄	White	5 Years	CE UK CMIM	LSR3251LX
Self-contained	AutoTest	140 lm		NM	Antipanic	3 h	3.2V-1.8Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR3170LX3N
Self-contained	AutoTest	140 lm		NM	Escape Route	3 h	3.2V-1.8Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR3171LX3N
Self-contained	AutoTest	165 lm		NM	Antipanic	3 h	3.2V-1.8Ah LiFePO₄	White	5 Years	CE UK CMIM Civil Defense	LSR3170LX3
Self-contained	AutoTest	165 lm		NM	Escape Route	3 h	3.2V-1.8Ah LiFePO₄	White	5 Years	CE UK CMIM Civil Defense	LSR3171LX3
Self-contained	DALI2	235 lm	140 lm	M/NM	Antipanic	1 h	3.2V-1.5Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9250LAPN
Self-contained	DALI2	235 lm	140 lm	M/NM	Escape Route	1 h	3.2V-1.5Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9251LAPN
Self-contained	DALI2	280 lm	170 lm	M/NM	Antipanic	1 h	3.2V-1.5Ah LiFePO₄	White	5 Years	CE UK CMIM Aenor N ENEC IECEE	LSR9250LAP
Self-contained	DALI2	280 lm	170 lm	M/NM	Escape Route	1 h	3.2V-1.5Ah LiFePO₄	White	5 Years	CE UK CMIM Aenor N ENEC IECEE	LSR9251LAP
Self-contained	DALI2	140 lm	85 lm	M/NM	Antipanic	3 h	3.2V-1.8Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9170LAP3N
Self-contained	DALI2	140 lm	85 lm	M/NM	Escape Route	3 h	3.2V-1.8Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9171LAP3N
Self-contained	DALI2	165 lm	100 lm	M/NM	Antipanic	3 h	3.2V-1.8Ah LiFePO₄	White	5 Years	CE UK CMIM Aenor N ENEC IECEE Civil Defense	LSR9170LAP3
Self-contained	DALI2	165 lm	100 lm	M/NM	Escape Route	3 h	3.2V-1.8Ah LiFePO₄	White	5 Years	CE UK CMIM Aenor N ENEC IECEE Civil Defense	LSR9171LAP3
Self-contained	Wireless SmartZ®	235 lm	140 lm	M/NM	Antipanic	1 h	3.2V-1.5Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9250LWPN
Self-contained	Wireless SmartZ®	235 lm	140 lm	M/NM	Escape Route	1 h	3.2V-1.5Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9251LWPN
Self-contained	Wireless SmartZ®	280 lm	170 lm	M/NM	Antipanic	1 h	3.2V-1.5Ah LiFePO₄	White	5 Years	CE UK CMIM	LSR9250LWP
Self-contained	Wireless SmartZ®	280 lm	170 lm	M/NM	Escape Route	1 h	3.2V-1.5Ah LiFePO₄	White	5 Years	CE UK CMIM	LSR9251LWP
Self-contained	Wireless SmartZ®	140 lm	85 lm	M/NM	Antipanic	3 h	3.2V-1.8Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9170LWP3N
Self-contained	Wireless SmartZ®	140 lm	85 lm	M/NM	Escape Route	3 h	3.2V-1.8Ah LiFePO₄	Black	5 Years	CE UK CMIM	LSR9171LWP3N
Self-contained	Wireless SmartZ®	165 lm	100 lm	M/NM	Antipanic	3 h	3.2V-1.8Ah LiFePO₄	White	5 Years	CE UK CMIM Civil Defense	LSR9170LWP3
Self-contained	Wireless SmartZ®	165 lm	100 lm	M/NM	Escape Route	3 h	3.2V-1.8Ah LiFePO₄	White	5 Years	CE UK CMIM Civil Defense	LSR9171LWP3
Central Battery System (CBS)		170 lm	170 lm		Antipanic	-	N/A	Black	2 Years	CE UK CMIM	LSR318023N
Central Battery System (CBS)		170 lm	170 lm		Antipanic	-	N/A	Black	2 Years	CE UK CMIM	LSR320024N
Central Battery System (CBS)		170 lm	170 lm		Escape Route	-	N/A	Black	2 Years	CE UK CMIM	LSR318123N
Central Battery System (CBS)		170 lm	170 lm		Escape Route	-	N/A	Black	2 Years	CE UK CMIM	LSR320124N
Central Battery System (CBS)		200 lm	200 lm		Antipanic	-	N/A	White	2 Years	CE UK CMIM	LSR318023
Central Battery System (CBS)		200 lm	200 lm		Antipanic	-	N/A	White	2 Years	CE UK CMIM	LSR320024
Central Battery System (CBS)		200 lm	200 lm		Escape Route	-	N/A	White	2 Years	CE UK CMIM	LSR318123
Central Battery System (CBS)		200 lm	200 lm		Escape Route	-	N/A	White	2 Years	CE UK CMIM	LSR320124

*NM: Non-maintained. The luminaire operates from emergency supply only upon failure of the normal mains supply.
*M/NM: Maintained/Non Maintained. With a switch which allows to select Maintained or Non Maintained mode function.
