ELYA EVACUATION CEILING – LEP-0448/23

ELYA LSC 45lm M/NM IP44/IK04 WHITE 230Vca/48Vcc NF LSC

ZEMPER Central Battery System (CBS), ELYA EVACUATION CEILING series, reference LEP-0448/23, Maintained type, with LSC control system, IP44 protection rating, IK04 impact resistance and Class II insulation.
Manufactured in Polycarbonate, color White RAL9003.
Methacrylate diffuser.
Light source: 16xLED 0.5W, 4000K colour temperature.
Supply voltage: 230V~ 3.6VA/ 48V⎓ 1.6Wmax.
Power factor 0.35.
Consumption in permanent mode 3,6 VA ca/ 1,6 W cc.
, ensuring an emergency luminous flux of 45 lm.
In maintained mode, the luminaire provides a luminous flux of 125 45 lm.
Suitable for installation on normally flammable surfaces.
Visible up to a distance of 20 m.
Installation type: Ceiling Surface - Recessed Ceiling.
Manufactured in Spain in compliance with standards: EN-60598-1, EN-60598-2-22, UTE-C71-802, NF-467.

Warranty

Years

Product

Specifications

Functional Specifications

Control system

LSC

Type

Maintained

Supply

230V~ 3.6VA/ 48V⎓ 1.6Wmax

Power factor

35%

Maintained mode consumption

3,6 VA ca/ 1,6 W cc

Emergency

45 lm

Mains

45 lm

Viewing distance

20 m

Mechanical and Aesthetic Specifications

Mounting

Ceiling Surface - Recessed Ceiling

Insulation

Class II

Ingress Protection

IP44

Impact protection

IK04

Lamp

16xLED 0.5W

LED color temperature

4000K

Body material

Polycarbonate

Finish

White RAL9003

Diffuser / Optics

Methacrylate

Working temperature

-20~40 °C

Suitable for flammable surface

Yes

Regulations

EN-60598-1

EN-60598-2-22

UTE-C71-802

NF-467

Certifications

CE declaration of conformity

CMIM

Morocco Declaration of Conformity

Certificado NF AEAS LSC

French NF LSC Product Certificate

Installation

Installation with mounting plate.

Installation type:

· Ceiling surface.

· Reccesed in ceiling. (Additional accessory required)

Possibility of connection with:

· Recessed wiring.

· Surface conduit wiring.

Includes PVC pictograms:

· 1 x man

· 1 x arrow

Operating characteristics

Luminaire of the type: Centralized.

Valid to be supply in the following ways:

· Directly at rated voltage.

· By means of a centralized power supply unit at the nominal voltage (consult possible options).

Spacing

No hay información de interdistancias disponible

Photometry

No hay información fotométrica disponible

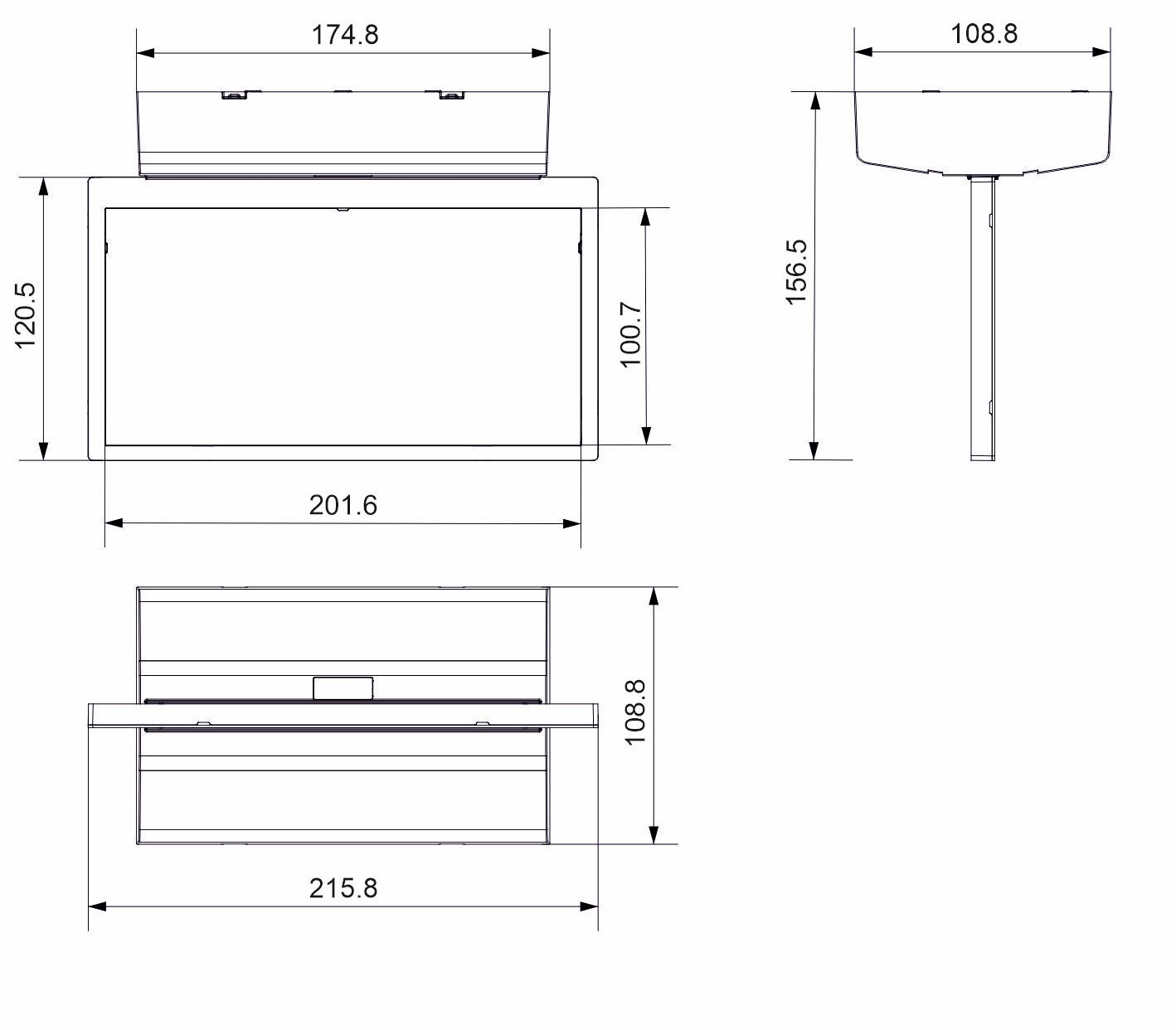

Dimensions

Weight

Product weight: 0.52 kg

Boxed product weight: 0.37 kg

Weight of box of 12 units: 7.73 kg

BC3 file

No hay información BC3 disponible

Battery system	Control system	Emergency	Mains	Type*	Duration	Battery	Colour	Warranty	Certifications	Part number
Self-contained	AutoTest	45 lm		NM	1 h	3.2V-0.5Ah LiFePO₄	White	5 Years	CE UK CMIM Aenor N ENEC IECEE NF SATI V+ & ENV.	LEP-3045LX
Self-contained	AutoTest	45 lm		NM	1 h	3.2V-0.5Ah LiFePO₄	Black	5 Years	CE UK CMIM Aenor N ENEC IECEE NF SATI V+ & ENV.	LEP-3045LXN
Self-contained	Wireless SmartZ®	45 lm		NM	1 h	3.2V-0.5Ah LiFePO₄	White	5 Years	CE UK CMIM Aenor N ENEC IECEE NF SATI V+ & ENV.	LEP-3045LW
Self-contained	Wireless SmartZ®	45 lm		NM	1 h	3.2V-0.5Ah LiFePO₄	Black	5 Years	CE UK CMIM Aenor N ENEC IECEE NF SATI V+ & ENV.	LEP-3045LWN
Central Battery System (CBS)		45 lm	45 lm	M	-	N/A	White	2 Years	CE UK CMIM NF LSC	LEP-0448/23
Central Battery System (CBS)		45 lm	45 lm	M	-	N/A	Black	2 Years	CE UK CMIM NF LSC & ENV.	LEP-0448/23N
